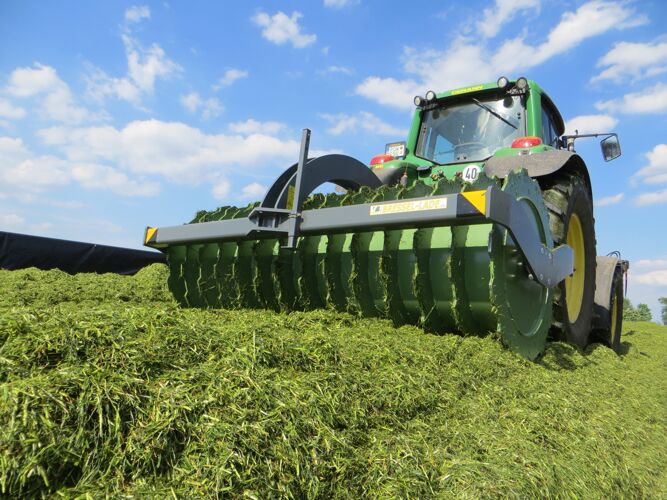

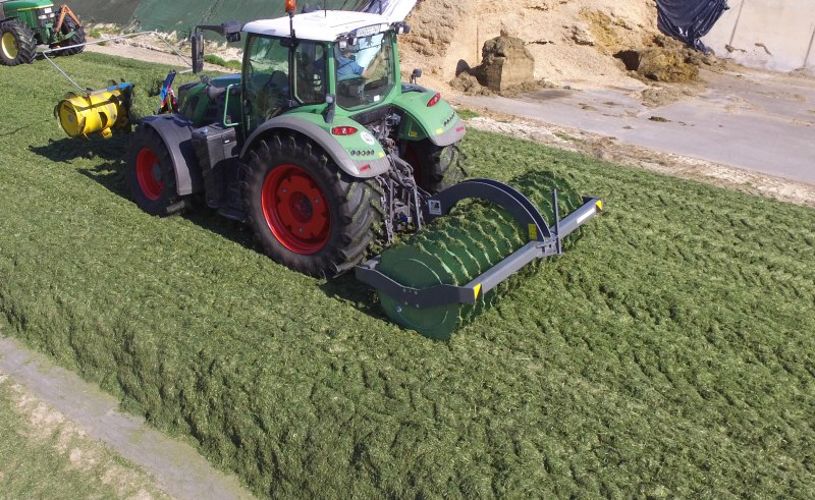

SILAGE ROLLER XL
for tractors with 3 to 8tons lifting capacity
Description
Biggest on market available Silageroller with 1160mm diameter for optimal results in silage stock.
Standard equipment
• For tail hydraulics PTO cat. III
• Total width 2860mm, width of roller 2750mm
• Diameter of the roller 1160mm with 14 rings with special geometric form for higher compression
• Weight: 2100kg (filled with water: 3300kg / with 2 edge compactors: 4000kg)
• With additional hauling hitch
• High value ball-bearings
NEW 2026 - Optional Sideshift
• With one double acting cylinder
• Adjustable 500mm to left and 500mm to right side
• Weight: 2525kg (filled with water: 3725kg / with 2 edge compactors: 4425kg)

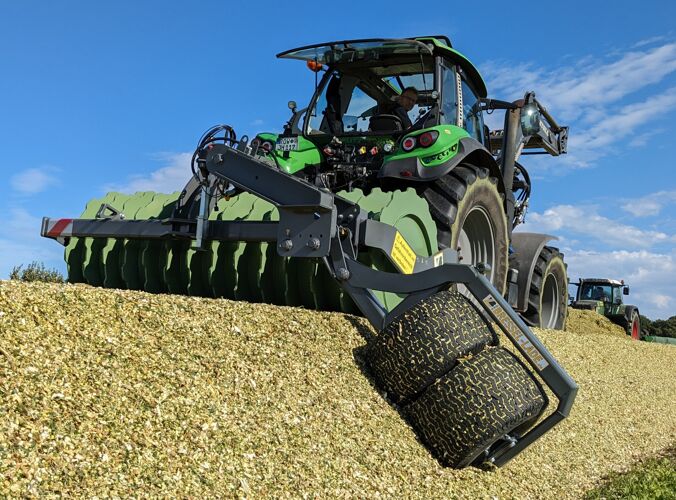

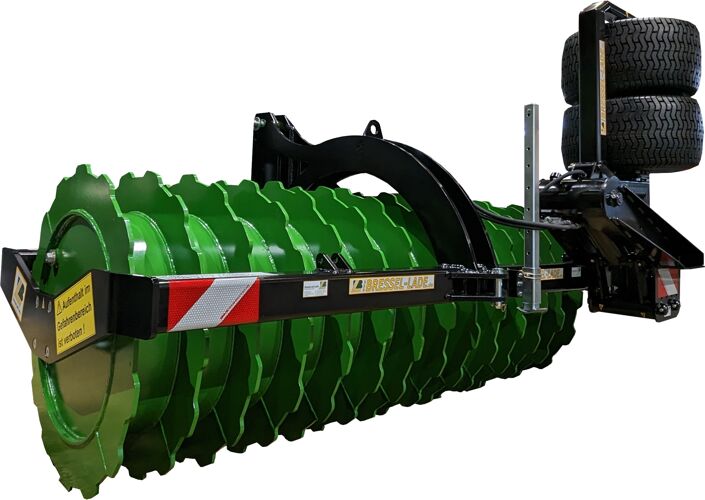

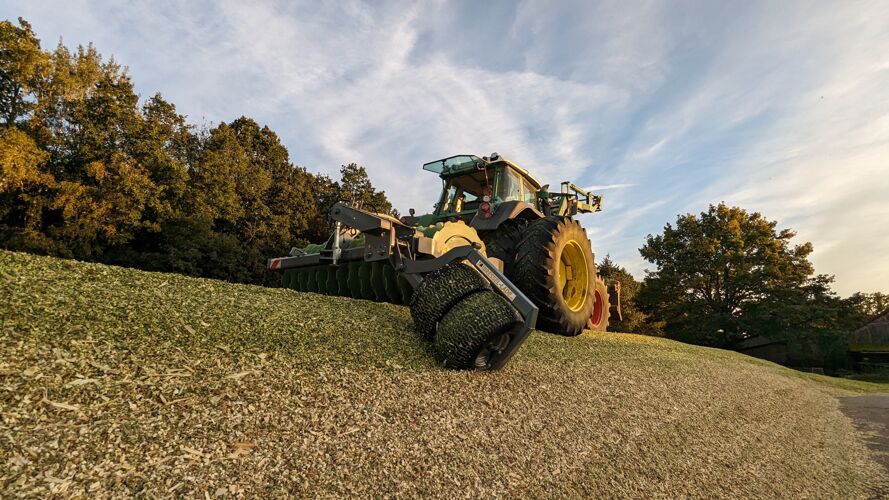

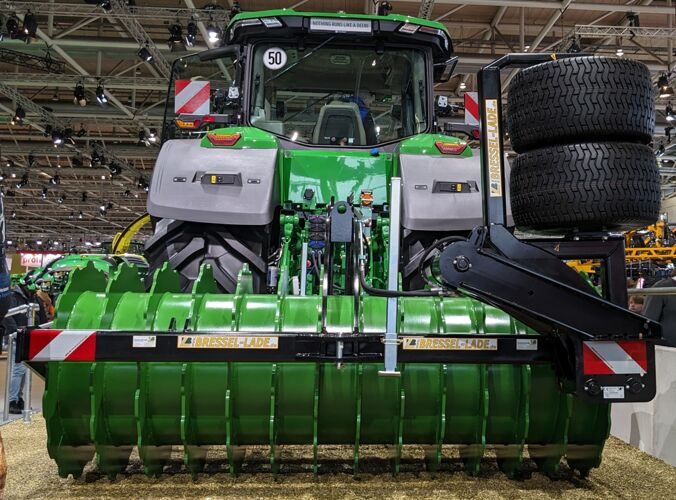

Optional Edge Compactor
• Can be installed left and right on nearly every silage roller left/right with transverse pipe 120x120 or 140x140mm
• 2 wheels with total width of 750mm and 650mm diametre: Width of frame: 1500mm
• With one double acting cylinder, turning range 150° (60° under horizont), weight: 350kg
- Available quickly! (not all colors)
Downloads
+
=
Choose Product
| Describtion | Width | Diameter | Rings | Weight empty/full | Parts-No. | Request |
|---|---|---|---|---|---|---|
| Silageroller XL | 2860 mm | 1160 mm | 14 | 2100/3300 kg | W17 | |
| Silageroller XL with sideshift | 2860 mm | 1160 mm | 14 | 2525/3725 kg | W18 | |
| Rebuit kit - Edge compactor | 750 mm | 650 mm | 2 | 350 kg | W17k |
SPECIAL EQUIPMENT
| Describtion | Parts-No. | Request |
|---|---|---|
 Color frame RAL 7043 - grey | FA-02 | |
 Color frame RAL 9005 - black | FA-03 | |
 Color frame similar to AGCO grey | FA-11 | |
 Color roller similar to Fendt nature green | FB-09 | |
 Color roller similar to MF red | FB-10 | |
 Color roller similar to John Deere green | FB-07 | |
| Color roller RAL 7043 - grey | FB-02 | |
| Color roller RAL 9005 - black | FB-03 | |
 Color roller RAL 2011 - orange | FB-05 | |
| With edge compactor right sided (+1 x DA, +350 kg) | KV-01 | |
| With edge compactor left sided (+1 x DA, +350 kg) | KV-02 | |
| With edge compactor both sided (+2 x DA, +700 kg) | KV-03 |
READY
| Delivery FCA at factory Visselhövede within 14 days (Transportcosts on request) |
