W10-W11
RUBBER BLADE
for loader from 0,5 to 4,5tons lifting capacity
![W10 - Without turn function [W10]](/img/scaled/px/2f63d58b91e4b492f2aecb2f3be58301_w681px_h500px_q80_59a806639a726_W101.jpg)
Description

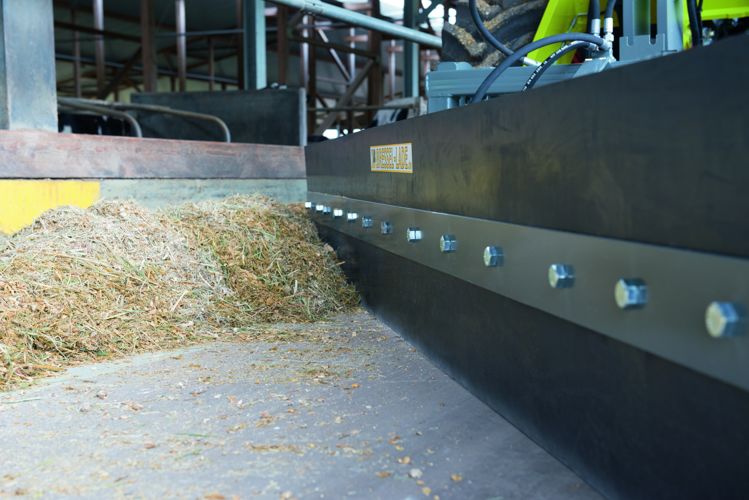

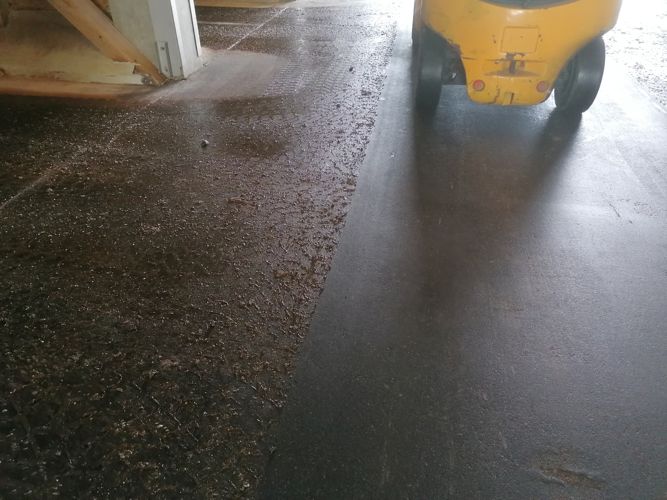

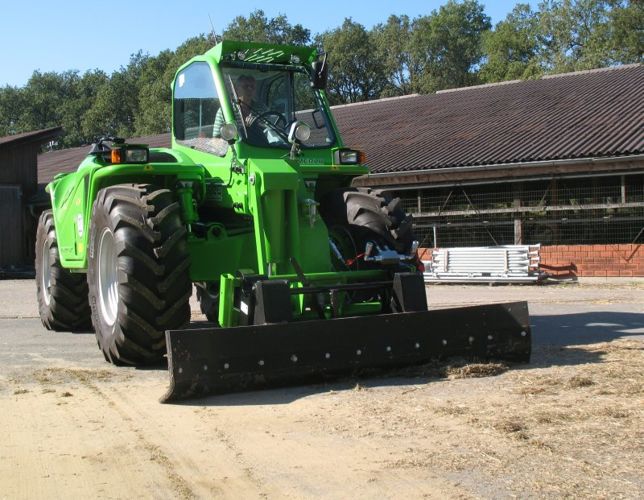

The Rubber blade is designed for pushing lose fodder, slurry, grain or snow on plain grounds.
Standard equipment
• Rubber blade (400x25mm) reinforced with textil
Rubber blade [W10]
• 35° angled on both sides for 300mm

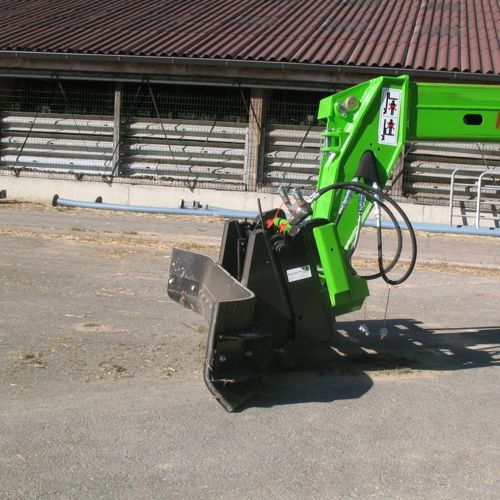

Rubber blade with turn function [W11]
• 55° hydraulic turnable left and right
• With 1 double-acting hydraulicylinder (max. hydraulic pressure 220 Bar)
• Straight rubber blade
Downloads
A PERFECT ATTACHMENT IN 3 STEPS
+
+
=
+
+
=
Choose Product
| Width | Model [Product] | Working width | Weight | Part-No. | Request |
|---|---|---|---|---|---|
| 2400 mm | Not turnable [W10] | 2300 mm | 120 kg | W10 BA-19 | |
| 2800 mm | Not turnable [W10] | 2700 mm | 140 kg | W10 BA-24 | |
| 3200 mm | Not turnable [W10] | 3100 mm | 160 kg | W10 BA-29 | |
| 2400 mm | Turnable [W11] | 1400 - 2400 mm | 200 kg | W11 BA-19 | |
| 2800 mm | Turnable [W11] | 1650 - 2800 mm | 220 kg | W11 BA-24 | |
| 3200 mm | Turnable [W11] | 1850 - 3200 mm | 240 kg | W11 BA-29 |
Loader QUICK COUPLER (Indicate Brand & type)
| Euro-System | AF-M4 | |
| Frontloader without Euro-coupling system | NE-02 | |
| Courtloader with max. 1,5to lifting capacity | NE-41 | |
| Wheel- and telescopic loader | NE-51 | |
| Pallet fork tines - Please indicate tine diameter | NE-80 | |
| Please indicate ALWAYS manufacturer and type of the loader on inquiries or orders! |
SPECIAL EQUIPMENT
 Color RAL 7043 - grey | ||
 Color RAL 9005 - black | ||
| Pressure limiting valve (needed for pressures above 220 bar) | DB-01 | |
| Pressure holding valve (needed for Bobcat, Dieci, Merlo, MF, aso.) | DH-01 |
READY
| Delivery FCA at factory Visselhövede (Transportcosts on request) |
Stand: 06/2024 | Our products are distributed by agriculture or building technic dealers | All prices + VAT.
