Z60
PALLET FORK TINES
Spare Parts
Description

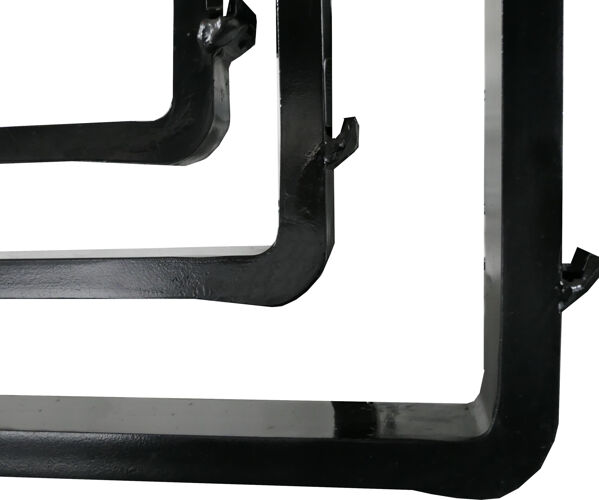

Forged pallet fork tine in industry quality
Standard equipment
• Forged pallet fork tine (industry quality)
• Fork produced acc. ISO 2330 and ISO 2328
• Lifting capacity by center of gravity: ISO 2/3 = 500mm, ISO 4 = 600mm
• Weight and price per piece
• Color: RAL 7021 greyblack
Special designed forks and foldable forks are deliverable on request.
- Available quickly (foldable tines excluded) !
A PERFECT ATTACHMENT IN 1 STEPS
=
=
Choose Product
| Norm | Length | Capacity (pair) | Diameter | Weight | Article-No. | Request |
|---|---|---|---|---|---|---|
| DIN 407/20 | 900 mm | 1500 kg | 80 x 35 mm | 35 kg | 71000109 | |
| DIN 407/20 | 1000 mm | 1500 kg | 80 x 35 mm | 36 kg | 71000110 | |
| DIN 407/20 | 1100 mm | 1500 kg | 80 x 35 mm | 38 kg | 71000111 | |
| DIN 407/20 | 1300 mm | 1500 kg | 80 x 35 mm | 42 kg | 71000113 | |
| ISO 2 | 900 mm | 2500 kg | 100 x 40 mm | 48 kg | 71000209 | |
| ISO 2 | 1000 mm | 2500 kg | 100 x 40 mm | 50 kg | 71000210 | |
| ISO 2 | 1100 mm | 2500 kg | 100 x 40 mm | 54 kg | 71000211 | |
| ISO 2 | 1200 mm | 2500 kg | 100 x 40 mm | 57 kg | 71000212 | |
| ISO 2 | 1300 mm | 2500 kg | 100 x 40 mm | 60 kg | 71000213 | |
| ISO 2 | 1500 mm | 2500 kg | 100 x 40 mm | 66 kg | 71000215 | |
| ISO 2 | 1800 mm | 2500 kg | 100 x 40 mm | 75 kg | 71000218 | |
| ISO 2 | several | foldable, 2500 kg | 120 x 40 mm | 62-93 kg | On request | |
| ISO 3 | 900 mm | 3500 kg | 100 x 50 mm | 69 kg | 71000309 | |
| ISO 3 | 1000 mm | 3500 kg | 100 x 50 mm | 71 kg | 71000310 | |
| ISO 3 | 1100 mm | 3500 kg | 100 x 50 mm | 75 kg | 71000311 | |
| ISO 3 | 1200 mm | 4500 kg | 120 x 50 mm | 95 kg | 71000312 | |
| ISO 3 | 1300 mm | 3500 kg | 100 x 50 mm | 83 kg | 71000313 | |
| ISO 3 | 1500 mm | 4500 kg | 120 x 50 mm | 109 kg | 71000315 | |
| ISO 3 | 1800 mm | 4500 kg | 120 x 50 mm | 133 kg | 71000318 | |
| ISO 3 | several | foldable, 3500 kg | 130 x 45 mm | 88-125 kg | On request | |
| ISO 3 | several | foldable, 4500 kg | 150 x 50 mm | 114-162 kg | On request | |
| ISO 4 | 1200 mm | 6000 kg | 130 x 60 mm | 127 kg | 71000412 | |
| ISO 4 | 1500 mm | 6000 kg | 130 x 60 mm | 145 kg | 71000415 |
READY
| Delivery FCA at factory Visselhövede (Transportcosts on request) |
Stand: 06/2024 | Our products are distributed by agriculture or building technic dealers | All prices + VAT.
