D65
LOGGING GRAB -WITH FORK
for loader from 1,5 to 4,5tons lifting capacity
Description
The Logging grab are designed for loading wooden trunks.
Standard equipment
• Lifting capacity 2500kg
• Grabable range ca. 220 to 1200mm (equipment with grapple)
• Width 1450mm
• With 1 double acting hydraulic cylinder per grapple (Max. hydraulic pressure 220 bar)
The model with 1 grapple is not deliverable for wheelloader with z-bar cinematik and telescopic loaders!
Downloads
A PERFECT ATTACHMENT IN 3 STEPS
+
+
=
+
+
=
Choose Product
| Model | Weight | Part-No. | Request |
|---|---|---|---|

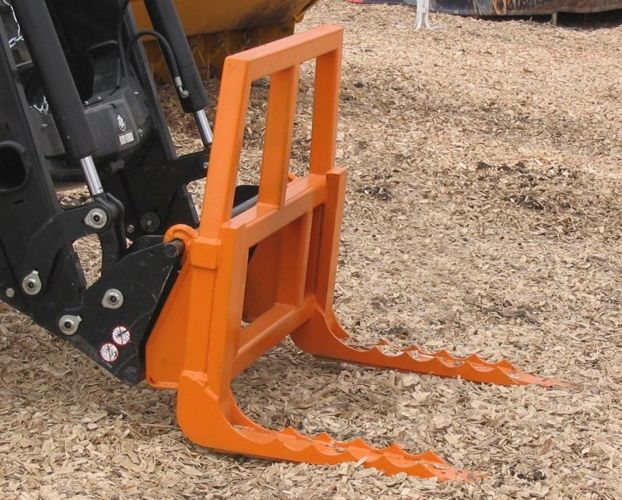

| Without grapples | 195 kg | D65 OZ-30 | |

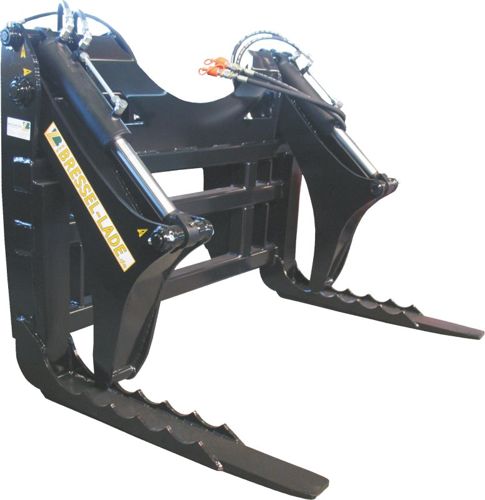

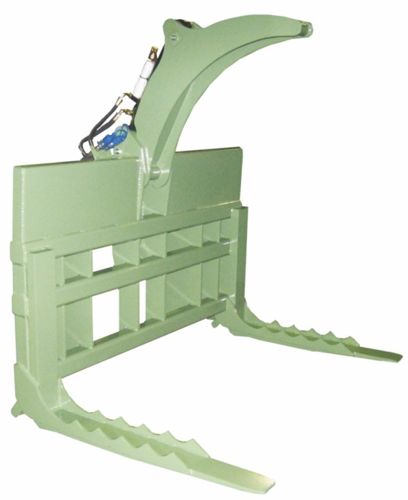

| With 1 grapple | 305 kg | D65 OZ-31 | |
| With 2 grapples | 385 kg | D65 OZ-32 |
Loader QUICK COUPLER (Indicate Brand & type)
| Euro-System | AF-M4 | |
| Frontloader without Euro-coupling system | NE-02 | |
| Front hydraulic cat. II | NE-18 | |
| Front hydraulic cat. III | NE-19 | |
| Wheel- or telescopic loader | NE-51 | |
| Please indicate ALWAYS manufacturer and type of the loader on inquiries or orders! |
SPECIAL EQUIPMENT
 Color RAL 7043 - grey | FA-02 | |
 Color RAL 9005 - black | FA-03 | |
 Color RAL 2011 - orange | FA-05 | |
 Color similar to AGCO grey | FA-11 | |
 Color similar to John Deere green | FA-07 | |
| Pressure limiting valve (needed for pressures above 220 bar) | DB-01 | |
| Pressure holding valve (needed for Bobcat, Dieci, Merlo, MF, aso.) | DH-01 |
READY
| Delivery FCA at factory Visselhövede (Transportcosts on request) |
Stand: 06/2024 | Our products are distributed by agriculture or building technic dealers | All prices + VAT.
