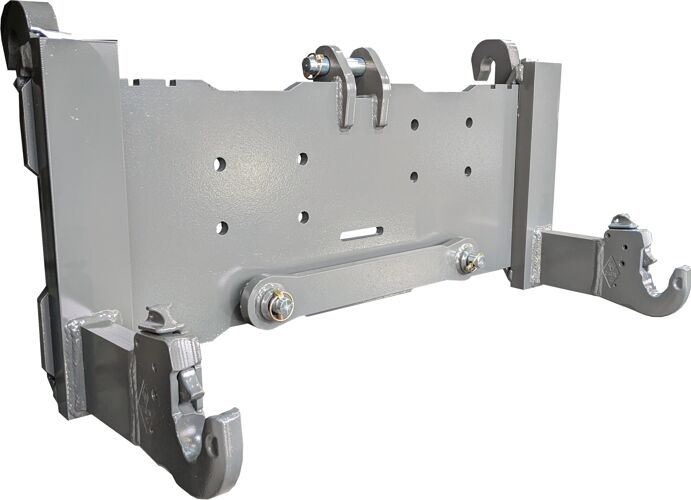

A20
ADAPTERFRAME TO FRONT-/TAIL HYDRAULIC
for loader from 1 to 6tons lifting capacity
Description

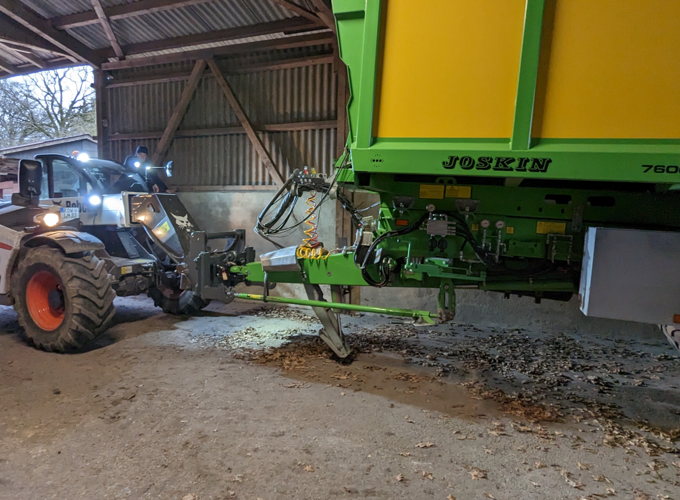

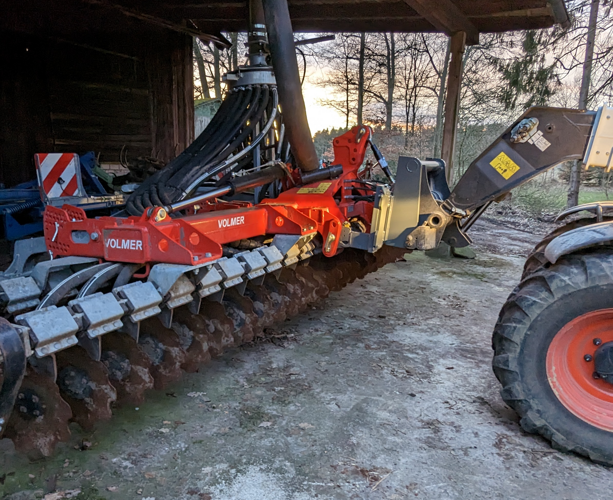

Attachments with 3-point linkage can be lifted and transported. The K80, K50 and towing latch allows handling of your trailers on your company yard.
Standard equipment
• High value cat. 3 quick coupling hooks
• With pull bar top link (not adjustable)
• Adjustable distance between hooks. (From 698 to 1040 mm middle-middle)
• Lifting capacity max. 4000 kg (on frontloaders of tractors: 2500 kg) by using of attached machines on the adapter frame is the max. allowed lifting capacity 2000kg. Distance of gravity center 500mm in front of the hooks. Stronger versions for example for wheel loaders to work with big silage forks are deliverable on request.
- Several variants available quickly!
Downloads
A PERFECT ATTACHMENT IN 3 STEPS
+
+
=
+
+
=
Choose Product
| Describtion | Lifting capacity | Weight | Part-No. | Request |
|---|---|---|---|---|
| Adapter with 3-point hitch cat. 3 | 2000 kg | 110 kg | A20 OZ-A9 |
Loader QUICK COUPLER (Indicate Brand & type)
| Euro-System | AF-M4 | |
| Frontloader without Euro-coupling system | NE-02 | |
| Front hydraulic cat. II | NE-18 | |
| Front hydraulic cat. III | NE-19 | |
| Courtloader | NE-41 | |
| Wheel- and telescopic loaders | NE-51 | |
| Excavator Lehnhoff MS01, MS03, MS08 | NE-70 | |
| Please indicate ALWAYS manufacturer and type of the loader on inquiries or orders! |
SPECIAL EQUIPMENT
 Color RAL 7043 - grey | FA-02 | |
 Color RAL 9005 - black | FA-03 | |
 Color RAL 2011 - orange | FA-05 | |
 Color similar to AGCO grey | FA-11 | |
 Color similar to Fendt nature green | FA-09 | |
 Color similar to MF red | FA-10 | |
 Color similar to John Deere green | FA-07 | |
| Lower ball bush adapter cat. 3/2 (per piece) | 70299032 | |
| Trailer hitch with bolt -screwed | ZM-01 | |
| K80 Ball coupling -screwed | K8-01 | |
| K50 Ball trailer hitch -screwed | K5-01 | |
| Adjustable top link cat.3 heavy | OL-01 |
READY
| Delivery FCA at factory Visselhövede (Transportcosts on request) |
Stand: 06/2024 | Our products are distributed by agriculture or building technic dealers | All prices + VAT.
