A20-A24

ADAPTERFRAME TO FRONT-/TAIL HYDRAULIC
for loader from 1 to 6tons lifting capacity

  • A20 Scorpion / 3-Point-Hitch
  • A22 Scorpion / Size 3
  • A24 Volvo / A Frame linkage
  • A20 with K80
  • A20 with adjustable top link
  • A20
  • A20

Description

Attachments with 3-point linkage or muncipal quick coupling plate or A-frame quick release attachmens can be picked up with this adapterframe on tractors, wheel loader or telehandler.

Standard equipment

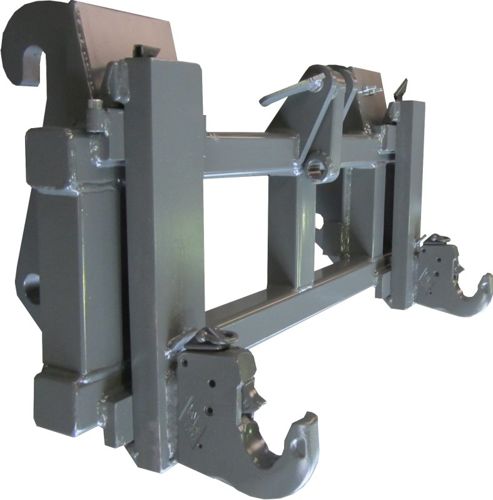

Product A20 NEW (04/2023) - Adapterframe to 3-point linkage cat. 3
• High value cat. 3 quick coupling hooks
• With pull bar top link (not adjustable)
• Adjustable distance between hooks. (From 698 to 1040 mm middle-middle)
• Lifting capacity max. 4000 kg (on frontloaders of tractors: 2500 kg) by using of attached machines on the adapter frame is the max. allowed lifting capacity 2000kg. Distance of gravity center 500mm in front of the hooks. Stronger versions for example for wheel loaders to work with big silage forks are deliverable on request.
A22 Adapterframe for quick mount plate
• Adapterplate fitting to muncipal attachments
A24 Adapterframe to A-Frame quick release triangle
• Adapterplate fitting to attachments with triangle linkage (Accord/Weißte)

Free selectable colors Other colors possible for an extra surcharge
RAL 7043 RAL 7043 RAL 9005 RAL 9005 RAL 6011 RAL 6011 RAL 2011 RAL 2011 Farbe Others (on request)


Express - Several variants available quickly!

Downloads

A PERFECT ATTACHMENT IN 3 STEPS
Punkt1 + Punkt2 + Punkt3 = PunktF
Choose Product Choose Product
DescribtionLifting capacityWeightPart-No. Request
Adapter with 3-point hitch cat. 3110 kgA20 OZ-A9
Adapterplate size 380 kgA22 OZ-K3
Adapterplate size 5100 kgA22 OZ-K5
Adapter with A-Frame linkage (m) communal300 kg60 kgA24 OZ-WK
Adapter with A-Frame linkage (m) cat. 01000 kg65 kgA24 OZ-W0
Adapter with A-Frame linkage (m) cat. 1-31400 kg90 kgA24 OZ-W2
Loader QUICK COUPLER (Indicate Brand & type) Loader QUICK COUPLER (Indicate Brand & type)
Euro-SystemAF-M4
Frontloader without Euro-coupling systemNE-02
Front hydraulic cat. IINE-18
Front hydraulic cat. IIINE-19
Courtloader NE-41
Wheel- and telescopic loadersNE-51
Excavator Lehnhoff MS01, MS03, MS08NE-70
Please indicate ALWAYS manufacturer and type of the loader on inquiries or orders!
SPECIAL EQUIPMENT SPECIAL EQUIPMENT
Lower ball bush adapter cat. 3/2 (per piece)70299032
ONLY PRODUCT A20
Trailer hitch with bolt -screwedZM-01
K80 Ball coupling -screwedK8-01
K50 Ball trailer hitch -screwedK5-01
Adjustable top link cat.3 heavyOL-01
READY READY
Delivery FCA at factory Visselhövede (Transportcosts on request)
Stand: 02/2023 | Our products are distributed by agriculture or building technic dealers | All prices + VAT.
